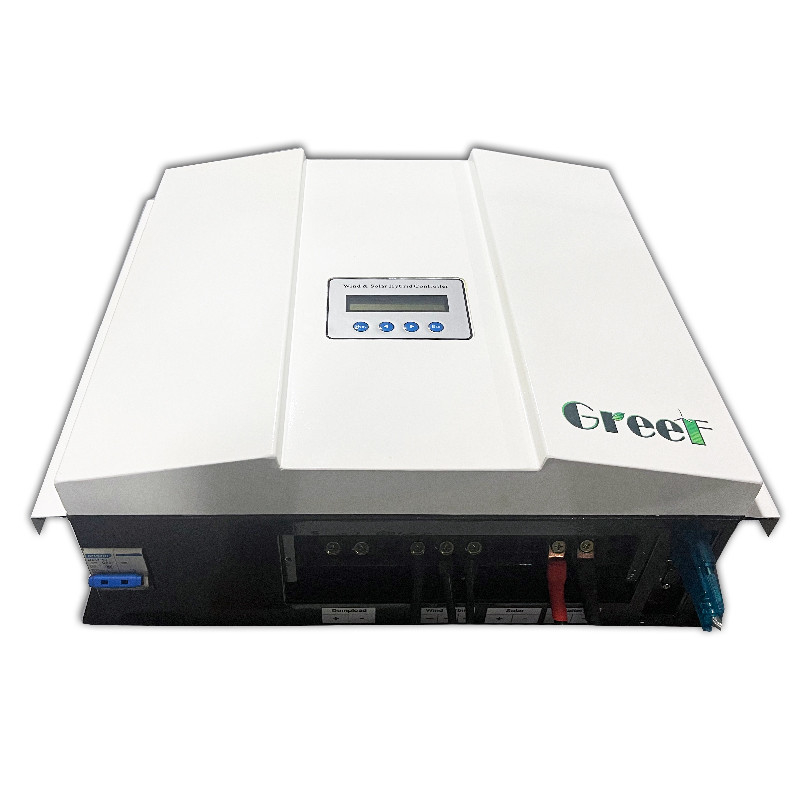

1KW-10KW Solar And Wind Controller For Off Grid / Hybrid Power Systems

1KW-10KW Solar And Wind Controller For Off Grid / Hybrid Power Systems

Off Grid Solar Wind Controller

Hybrid Power Systems Solar Wind Controller

1KW-10KW Solar Wind Controller

Place of Origin:

Qingdao

Brand Name:

Greef

Certification:

CE

Model Number:

GBBC

Contact Us
Request A Quote
Product Details
Wind Start Charging Voltage(Cut In) * Adjustable:
20V/ 120V
Rated Wind Power:
1KW-10KW
Under Voltage (Low) * Adjustable:
40.8V/210V
Nominal System Voltage:
48V/240V
Control Mode:
LCD
Wind Dump Load Rotate Speed(Rota) * Adjustable:
800R
Wind Charging Range * Adjustable:
DC (20-150)V/DC (120-400)V
Charge Control Method:
PWM/MPPT
Payment & Shipping Terms
Minimum Order Quantity
1Set
Price
Negotiable
Packaging Details
Foam+plywooden case
Delivery Time
25 working days
Payment Terms
T/T, Western Union, MoneyGram, L/C
Supply Ability
Supply Ability
Product Description

Product Description:

A special design wind and solar hybrid controller is available for off-grid wind solar hybrid generation system. This controller has an elegant appearance, making it a visually pleasing addition to your setup. Not only does it have a sophisticated look, but its operation is also easy to manage.

One main advantage of this type of controller is its ability to make both wind generator and solar panel charging to batteries safe and efficient. As a result, you can rest assured that your wind solar hybrid system will operate effectively without compromise.

1KW-10KW Solar And Wind Controller For Off Grid / Hybrid Power Systems 0
1. Smart MPPT(Boost & Buck) Function: Wide charge range.
2. Configurable Power Curve: Users can set parameters, and the controller will automatically generate the power curve.
3. Three-Stage Charging: The system uses a three-stage charging method to ensure charging efficiency and battery lifespan.
4. Wind Resistance and Speed Reduction: The system has a unique electrical speed reduction feature to effectively handle strong winds, preventing overheating and brake failure.
5. Low-Power Standby: When not in use, the system automatically enters a low-power standby mode.
6. Overload Protection: The system includes over-speed, over-voltage, and over-current protection to ensure safe operation.
7. Can be combined with solar energy.
8. Standard Interface: The system is equipped with a standard RS485 interface and Modbus protocol for easy interconnection with other systems.
9. APP and WEB remotely monitoring and control.
Product Parameters
Model
GBBC1K/48
GBBC2K/48
GBBC3K/48
GBBC5K/48
GBBC10K/240
Rated wind power
1KW
2KW
3KW
5KW
10KW
Nominal system voltage
48V
48V
48V
48V
24V
Under voltage (Low)*adjustable
20.8V
40.8V
40.8V
81V
210V
Under voltage recovery voltage(Rlow)*adjustable
23.5V
46.5V
46.5V
93V
230V
Over voltage(Full)*adjustable
28.8V
57.6V
57.6V
115V
284V
Over voltage recovery voltage(RFull)*adjustable
26.5V
52.8V
52.8V
105V
265V
Float voltage(Flot)*adjustable
27.6V
54.0V
54.0V
108V
272V
Wind dump load rotate speed(Rota)*adjustable
800R
800R
800R
400R
800R
Wind charging range
DC (20-350)V
DC (20-350)V
DC (20-350)V
DC (20-350)V
DC (120-400)V
Wind start charging voltage(Cut In)*adjustable
24V
20V
20V
20V
120V
Wind dump load voltage(Vmax)*adjustable
80V
180V
150V
380V
400V
Dump load control mode
Over rotate speed limiting, Over voltage limiting, Over Current limiting, PWM
Wind charging mode
MPPT(Boost & Buck) & PWM
MPPT Mode
Auto & P-V Curve
Display mode
LCD
Display content
Battery: Voltage; charging current; percentage of battery power.
Wind: Voltage; charging current; rotate speed; output current; output power
Solar: Voltage; charging current.
Loads: Current; power; working mode.
Operating temperature
& Relative humidity
﹣20~﹢55℃/35~85%RH(Non-condensing)
Power Loss
≤3W
Protection type
Battery: Over-discharge protection; over-charge protection; anti-reverse connection.
Wind: Over rotate speed protection, over voltage protection, over current protection.
Loads: Over-load protection
Controller size
450*425*210(mm)
450*425*210(mm)
450*425*210(mm)
450*330*210(mm)
450*330*210(mm)
Net weight
16KG
16KG
16KG
12KG
11KG
Communication function
RS232/RS485/USB/GPRS/WIFI/Ethernet
Details Pictures
1KW-10KW Solar And Wind Controller For Off Grid / Hybrid Power Systems 1
1KW-10KW Solar And Wind Controller For Off Grid / Hybrid Power Systems 2
1KW-10KW Solar And Wind Controller For Off Grid / Hybrid Power Systems 3
1KW-10KW Solar And Wind Controller For Off Grid / Hybrid Power Systems 4
1KW-10KW Solar And Wind Controller For Off Grid / Hybrid Power Systems 5
System Solution
We can customize the system to suit your requirements
1KW-10KW Solar And Wind Controller For Off Grid / Hybrid Power Systems 6
Product packaging
1KW-10KW Solar And Wind Controller For Off Grid / Hybrid Power Systems 7
Advantages
1KW-10KW Solar And Wind Controller For Off Grid / Hybrid Power Systems 8

Applications:



Wind turbine controllers find their primary application in wind power systems. They act as intelligent control devices for wind turbines. These controllers are of great significance as they improve energy utilization efficiency and ensure safe and stable operation of the system.



Customization:





Support and Services:



The Off Grid Controller product technical support and services include:

- Troubleshooting assistance over the phone or email

- Remote technical support and diagnostics

- Firmware updates and upgrades

- Repair and replacement services for defective components

- On-site technical support and maintenance

- Technical training and documentation



Packing and Shipping:



Product Packaging:

The Off Grid Controller will be packaged securely in a sturdy cardboard box with bubble wrap to prevent any damage during shipping. The product will be labeled with the product name and a barcode for tracking purposes.

Shipping:

The Off Grid Controller will be shipped via standard ground shipping through our preferred carrier. Shipping times may vary depending on your location, but typically take between 3-7 business days. Once your order has shipped, you will receive a confirmation email with tracking information. Please ensure that someone is available to receive and sign for the package upon delivery.
